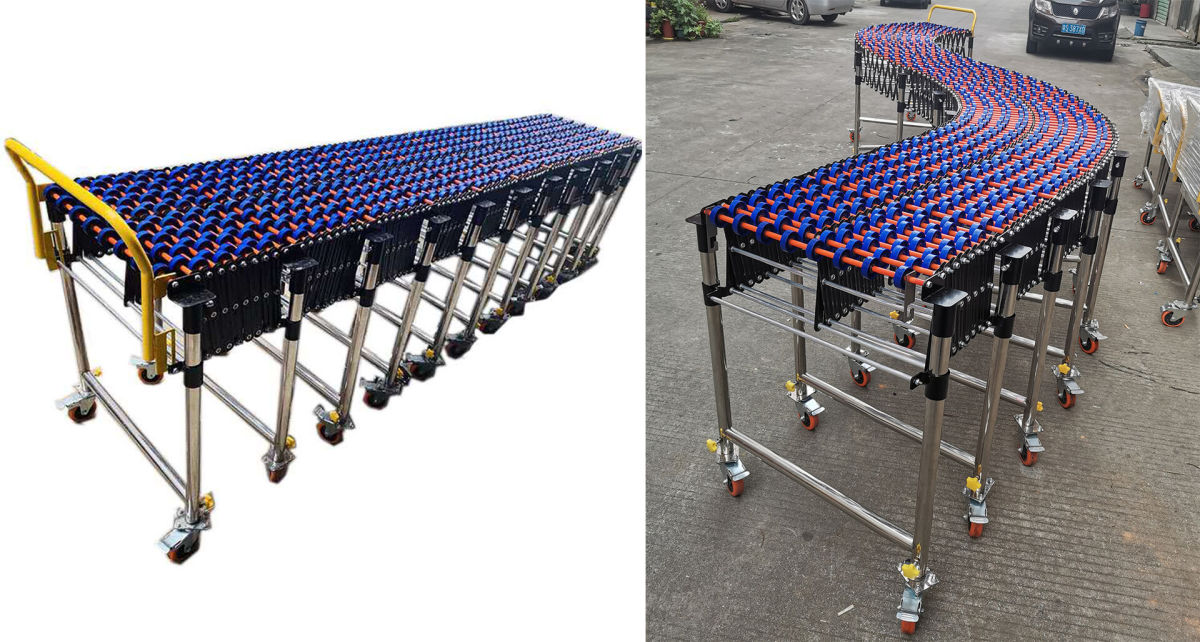

Middle Frame (H Type)

φ38mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Frame

φ32mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Wheel Shoulder

100L x 80W Steel Plate, Thickness: 2.0mm

Bottom Wheel

Universal Wheel with Brake, 4"

Rubber Wheel Outside Diameter

φ48mm

Rubber Wheel Quantity

80pcs for 600mm Width Table

Rubber Wheel Material

ABS Industrial Plastic + PR608Z Bearing

Flexible Ratio

Max.1700mm, Min.350mm

Loading Weight

100kgs/㎡

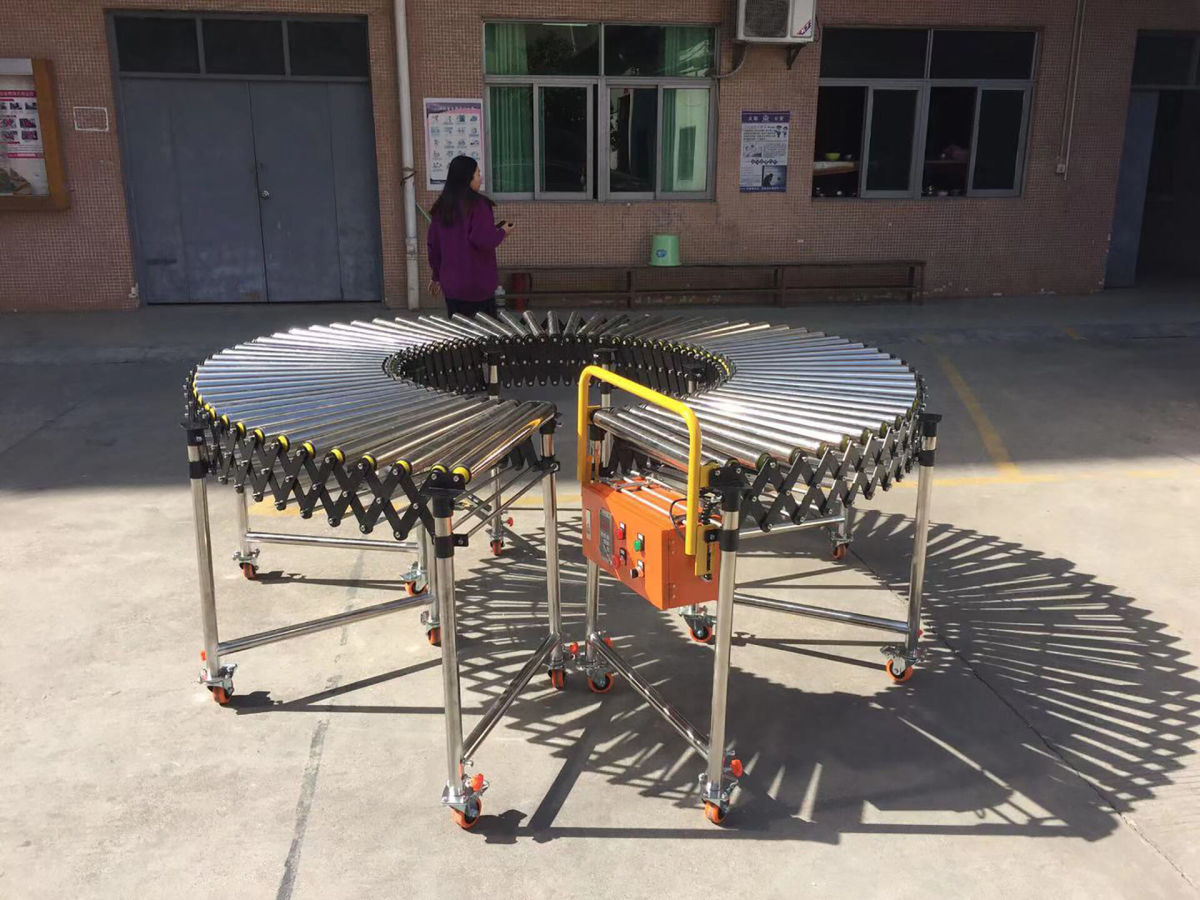

Middle Frame (H Type)

φ38mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Frame

φ32mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Wheel Shoulder

100L x 80W Steel Plate, Thickness: 2.0mm

Bottom Wheel

Universal Wheel with Brake, 3"

Roller Diameter

φ50mm, Thickness: 2.0mm

Inner Shaft Diameter

φ12mm

Side Connection Frame

Thickness: 4.0mm

Roller Quantity Per Meter

14pcs / 600m width

Roller Material

201 Stainless Steel

Roller Thickness

1.5-2.0mm

Flexible Ratio

Max.1800mm, Min.700mm

Loading Weight

100kgs/㎡

Turn Radius

800mm

Driving Direction

Positive / Negative

Motor Power

120W

Converter

380V/220V

Emergency Switch

1

Speed

18m/Min.

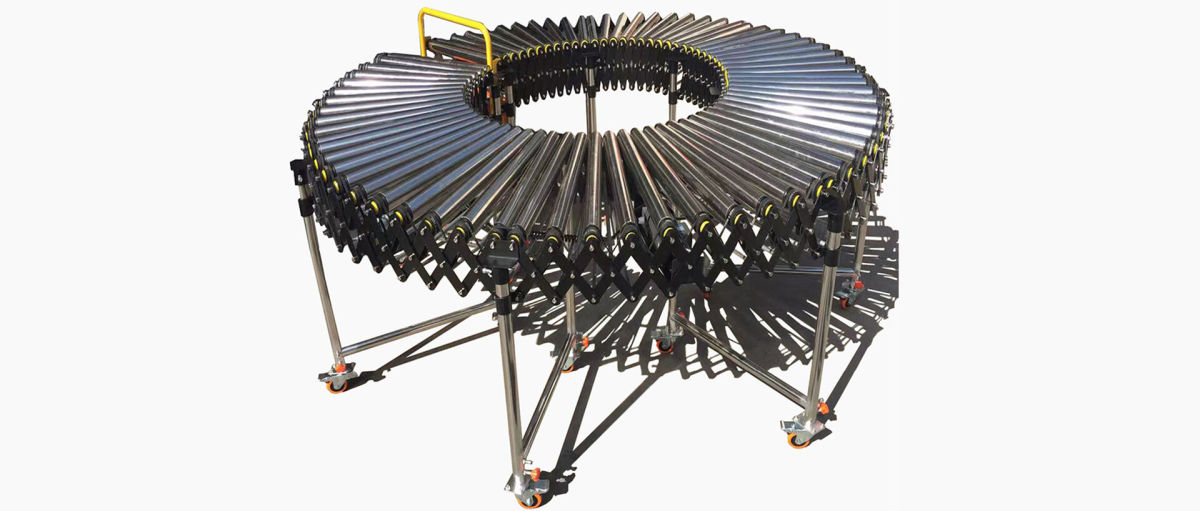

Middle Frame (H Type)

φ38mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Frame

φ32mm, 201 Stainless Steel, Thickness: 1.5mm

Bottom Wheel Shoulder

100L x 80W Steel Plate, Thickness: 2.0mm

Bottom Wheel

Universal Wheel with Brake, 3"

Roller Diameter

φ50mm, Thickness: 2.0mm

Inner Shaft Diameter

φ12mm

Side Connection Frame

Thickness: 4.0mm

Roller Quantity Per Meter

10pcs / 600m width

Roller Material

201 Stainless Steel

Roller Thickness

1.5-2.0mm

Flexible Ratio

Max.1350mm, Min.600mm

Loading Weight

100kgs/㎡
